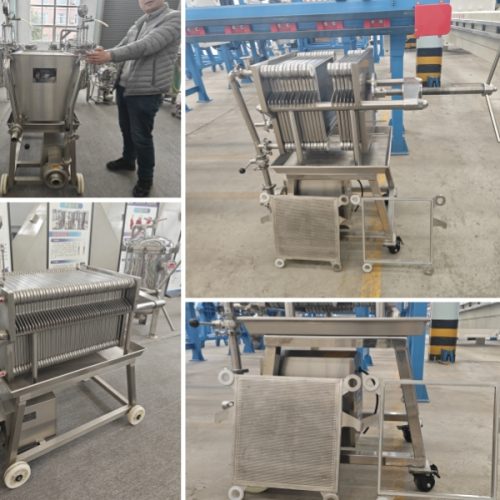

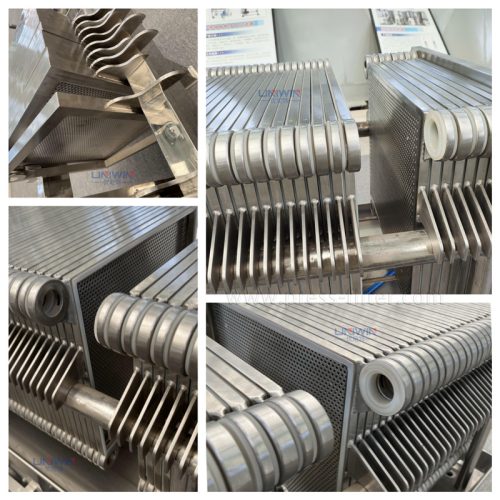

Stainless Steel Filter Press Machine

Our premium stainless steel filter press combines uncompromising construction quality with advanced filtration technology to deliver exceptional performance in the most demanding industrial applications. Engineered for environments where corrosion resistance, hygienic processing, and regulatory compliance are non-negotiable.

Stainless Steel Filter Press Manufacturer

Type: SS stainless steel filter press
Capacity: 1-50 m2
Weight: 500 kg
Size: 1980*880*900 mm
Applications: fruit juice,drinks,wine,beer etc

Stainless Steel Filter Press Definition

A stainless steel filter press is a type of machine used to separate solid materials from liquids. It is made of stainless steel and is used in continuous pressure. A S.S. filter press usually uses hydraulic closing. Stainless steel filter plates are made of different materials than normal PP filter press plates. The plates of the stainless steel filter press are made of either S.S. 304 or S.S. 316. The frame is made of carbon steel with stainless steel coating, and the filter plates are made entirely of stainless steel. It is a machine that separates solid and liquid parts of a liquid. This machine is used in many industries, including food, environmental protection, light industry, pharmaceuticals, chemicals, metallurgy, and petroleum. It is the ideal fine filtering equipment for beer, white wine, grape wine, liquid beverages, or sterilization filtration.

Stainless Steel Filter Press Working Principle

The fruit juice, wine slurry, etc., is pumped into the chamber formed by the filter plates and frame. The liquid passes through the filter cloth and flows out through the filter press’s liquid outlet. The solid will leave the chamber after one filtering cycle is finished, and then the filter cake and filtrate are well separated.

Stainless Steel Filter Press Parameters

Model	Filter Area(㎡)	No. of Plate	Flow(T/h)	Plate Size (mm)	Dimension(mm)
BASJL600-14	14	41	10-13	600×600	1750×870×1350
BASJL600-21	21	61	15-20	600×600	2100×870×1350
BASJL600-24	24	71	20-25	600×600	2250×870×1350
BASJL600-35	35	101	25-30	600×600	2800×870×1350
BASJL400-2	2	15	1-2	400×400	1250×660× 1300
BASJL400-3	3	21	1-3	400×400	1350×660×1300
BASJL400-4	4	31	3-4	400×400	1550×660×1300
BASJL400-6	6	45	4-6	400×400	1750×660×1300
BASJL400-8.5	85	61	6-8	400×400	2100×660×1300
BASJL400-9.5	9.5	71	8-10	400×400	2300×660×1300

Stainless Steel Filter Press Advantages

The board is made of stainless steel. It resists corrosion, can withstand high temperatures, and lasts a long time.
The plate and frame design is used, and different filter materials are used according to different filter needs to achieve the best filter performance.
It has a larger capacity. The stainless steel filter press can be squeezed through the hydraulic system. This makes the filtering area and capacity much larger, and the filtering effect is better.
It’s easy to clean. The whole structure is covered in stainless steel.
It can meet the needs of the food and pharmaceutical industries.
